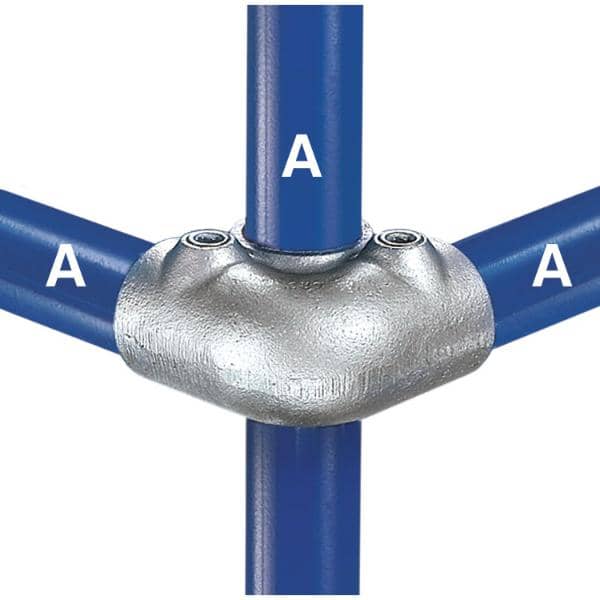

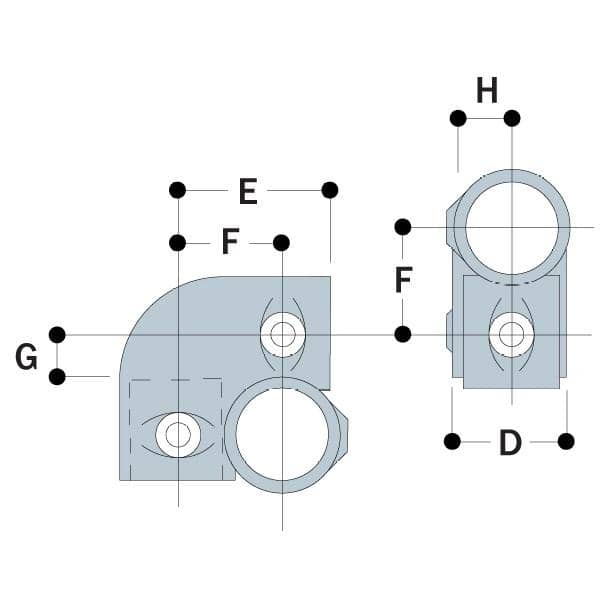

This fitting is designed to provide a 90 degree offset corner joint. When calculating the cutting lengths for pipe, dimension 'G' should be subtracted to give the pipe length for the rails and dimension 'H' should be added to give the pipe length for the upright. Note: To obtain the true height of the upright the allowance for the base fittings must be included.
Nominal Pipe Size
inches
lbs
Type
A
B
C
D
E
F
G
H
121-7
1 1/4"
2.16
2.83
1.93
0.87
1.10
2.03
