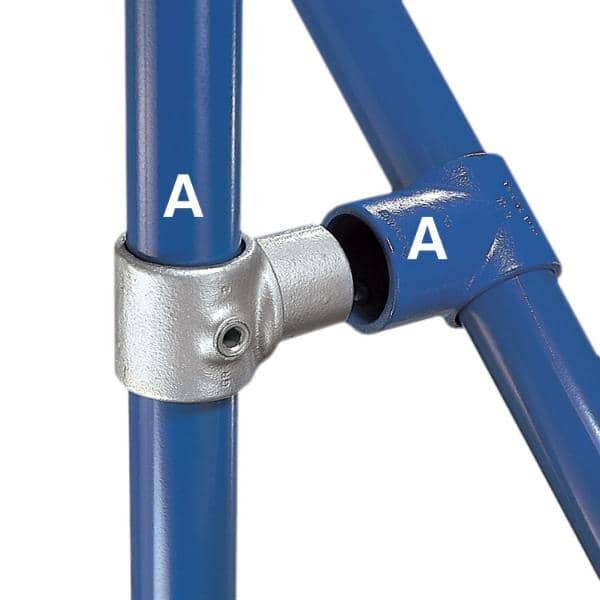

An internal swivel fitting, designed to accommodate varying angles on handrailing to staircases, ramps, or bracing. Used in conjunction with Types 10, 15, 25, or 45, it eliminates the need for specially drilled angle fittings Types 27 and 28.
Nominal Pipe Size
inches
lbs
Type
A
B
C
D
E
F
G
H
114-2
1/4"
0.43
0.51
0.83
0.04
114-6
1"
0.91
1.30
1.14
0.79
114-7
1 1/4"
1.06
1.65
1.42
1.19
114-8
1 1/2"
1.18
1.93
1.61
1.41
