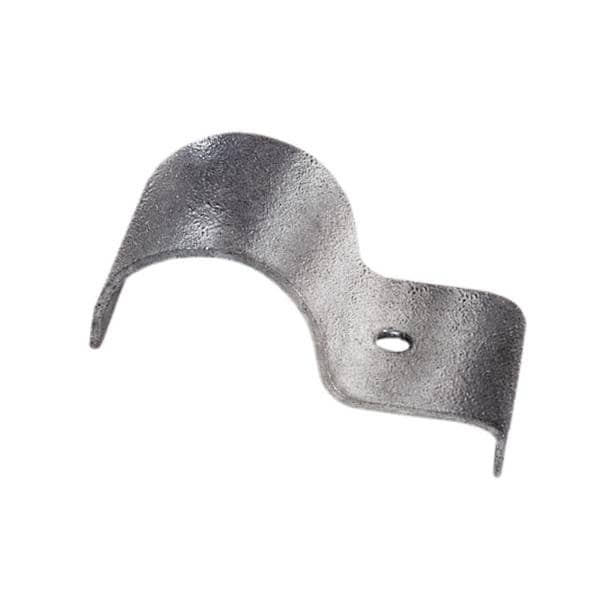

Type 105 - Sheeting Clip Without Hardware
Description
This fitting is used to attach profiled or flat sheeting. It is not supplied with hardware. Ø indicates diameter of bolt hole.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | Ø | lbs. |
| 105-6 | 1.32" | 1.26 | 1.5 | 0.51 | 1.97 | 0.35 | 0.31 |
| 105-7 | 1.66" | 1.50 | 1.57 | 0.51 | 1.97 | 0.35 | 0.35 |
| 105-8 | 1.90" | 1.57 | 1.57 | 0.51 | 1.97 | 0.35 | 0.4 |
| 105-9 | 2.38" | 1.89 | 1.57 | 0.51 | 1.97 | 0.35 | 0.51 |
