Type LM51 - Male Double Socket Member
Description

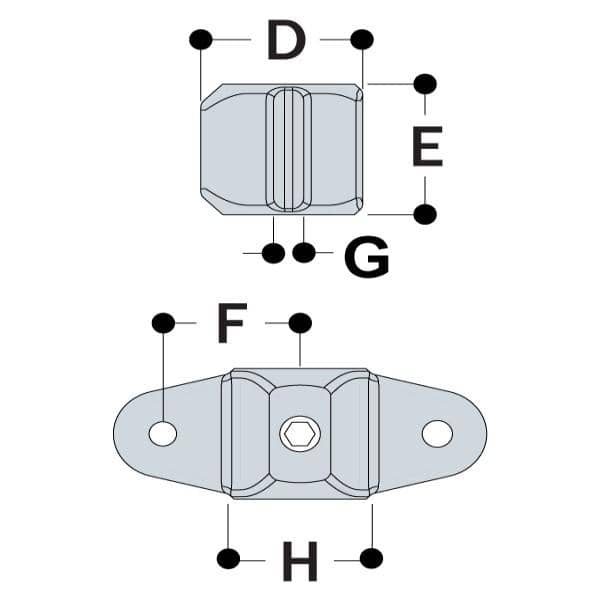

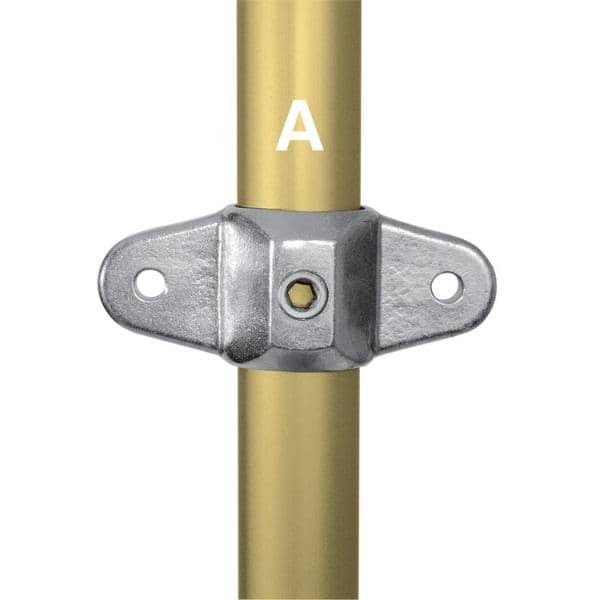

One half of a combination fitting. This can also be used for attaching flat panels to tubular structures. Ø indicates diameter of rivet holes.
Share:
Copied!
| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| LM51-6 | 1.32" | 1.97 | 1.73 | 1.85 | 0.43 | 1.67 | 0.38 | 0.35 |
| LM51-7 | 1.66" | 2.32 | 2.00 | 1.97 | 0.43 | 2.09 | 0.38 | 0.51 |
| LM51-8 | 1.90" | 2.56 | 2.36 | 2.17 | 0.43 | 2.36 | 0.38 | 0.60 |
