Type LM50 - Male Single Socket Member
Description

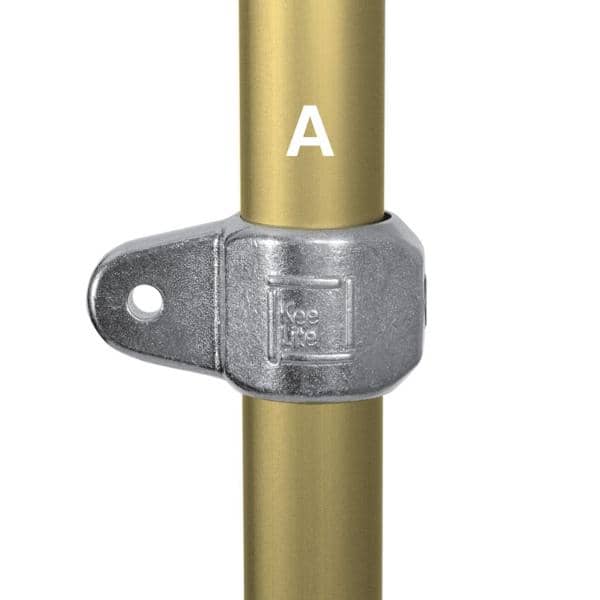

The male part of a swivel fitting combination. This fitting can also be used to attach flat panels to tubular structures. Ø indicates diameter of rivet hole.
Share:
Copied!

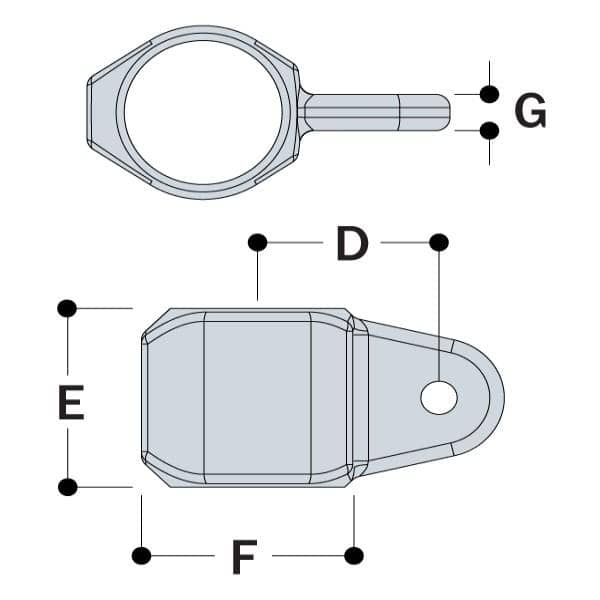

| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | Ø | lbs. |
| LM50-6 | 1.66" | 1.97 | 1.73 | 1.85 | 0.43 | 0.38 | 0.26 |
| LM50-7 | 1.90" | 2.32 | 2.00 | 1.97 | 0.43 | 0.38 | 0.33 |
| LM50-8 | 2.38" | 2.56 | 2.36 | 2.17 | 0.43 | 0.38 | 0.44 |
