Type L30 - 30° to 45° Adjustable Cross
Description
This adjustable fitting can be used for railing on staircases between the mid-rail and intermediate upright which is required to remain vertical. It can be used at any selected angle between 30° and 45°.
Share:
Copied!

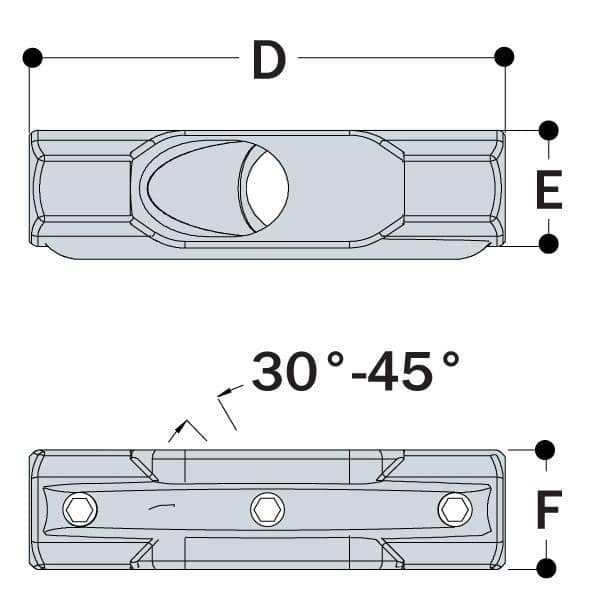

| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | F | lbs. |
| L30-7 | 1.66" | 8.46 | 2.07 | 2.13 | 1.15 |
| L30-8 | 1.90" | 9.65 | 2.34 | 2.36 | 1.52 |
