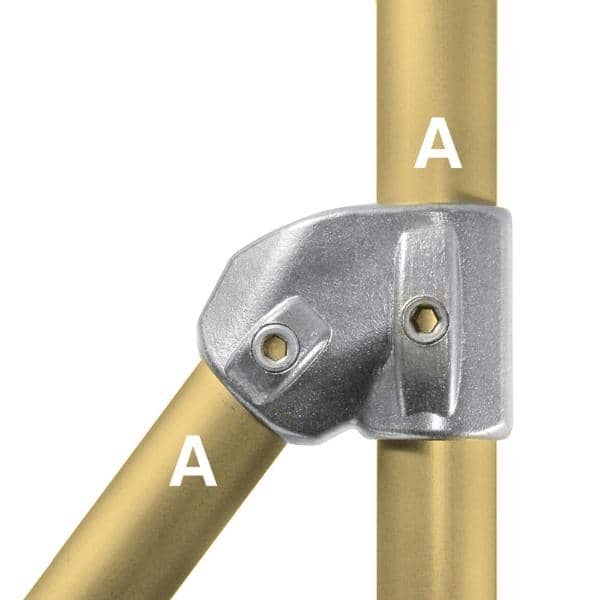

Type L29 - 30° to 60° Single Socket Tee
Description
This adjustable fitting is most frequently used for struts and braces. It can be used at any selected angle between 30° and 60°. Suitable for connecting an angled staircase rail to a vertical upright.
Share:
Copied!

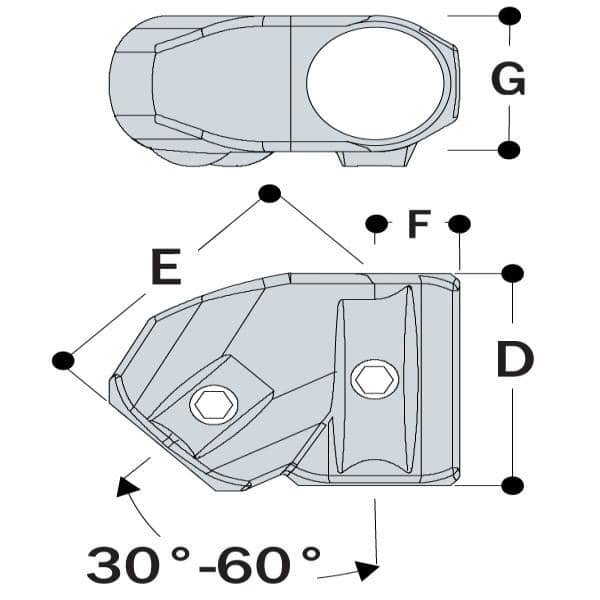

| Pipe OD | Meas. (in.) | |||||
| Type | A | D | E | F | G | lbs. |
| L29-7 | 1.66" | 3.23 | 3.74 | 1.06 | 2.07 | 0.70 |
| L29-8 | 1.90" | 3.66 | 4.25 | 1.18 | 2.32 | 0.90 |
