Type L26 - Two Socket Cross
Description

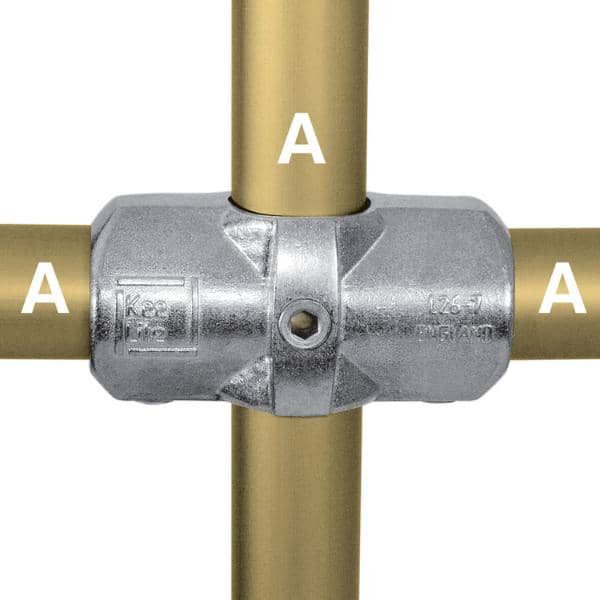

Usually paired with Type L25 to give a 90° joint between the middle rail and an intermediate upright on guardrail. The upright passes through the fitting.
Share:
Copied!

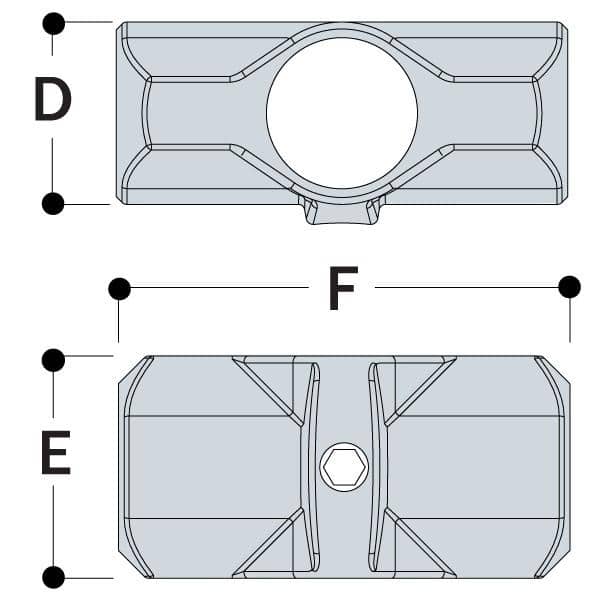

| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | F | lbs. |
| L26-6 | 1.32" | 1.67 | 2.20 | 4.09 | 0.37 |
| L26-7 | 1.66" | 2.09 | 2.52 | 5.12 | 0.62 |
| L26-8 | 1.90" | 2.36 | 2.76 | 5.83 | 0.99 |
| L26-9 | 2.38" | 2.91 | 3.23 | 7.09 | 1.46 |
