Type L20 - Side Outlet Elbow
Description

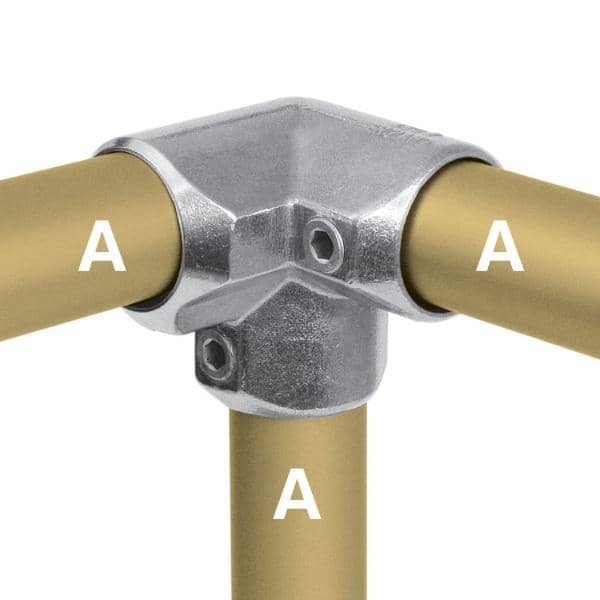

A 90° corner joint most frequently used for the top rail of guardrail. It can also be considered for the top corner joint of benches, work tables, and other rectangular structures.
Share:
Copied!

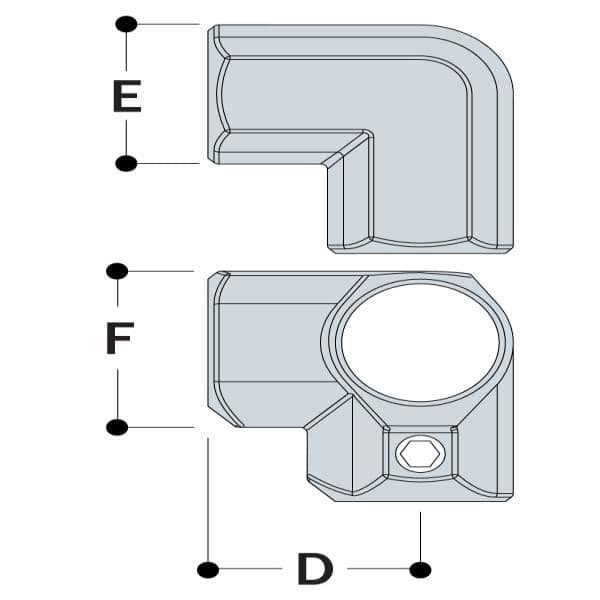

| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | F | lbs. |
| L20-6 | 1.32" | 2.05 | 1.67 | 1.97 | 0.42 |
| L20-7 | 1.66" | 2.56 | 2.09 | 2.32 | 0.77 |
| L20-8 | 1.90" | 2.91 | 2.36 | 2.56 | 1.10 |
