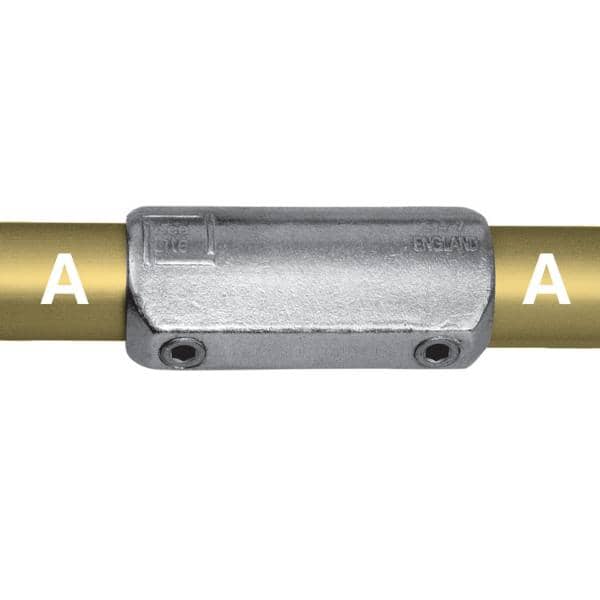

Type L14 - Straight Coupling
Description
Designed to give an in-line joint between tubes of the same size. Frequently used to allow full pipes to be used in railing applications. Note: It is not advisable to join the upper and lower rails of a railing within the same bay.
Share:
Copied!

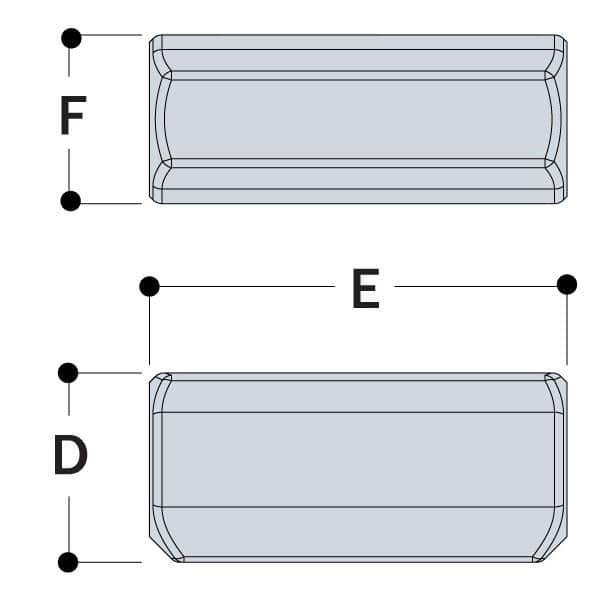

| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | F | lbs. |
| L14-6 | 1.32" | 1.97 | 3.94 | 1.67 | 0.40 |
| L14-7 | 1.66" | 2.32 | 5.12 | 2.09 | 0.73 |
| L14-8 | 1.90" | 2.56 | 5.83 | 2.36 | 0.82 |
