Type 86 - Angle Tee
Description

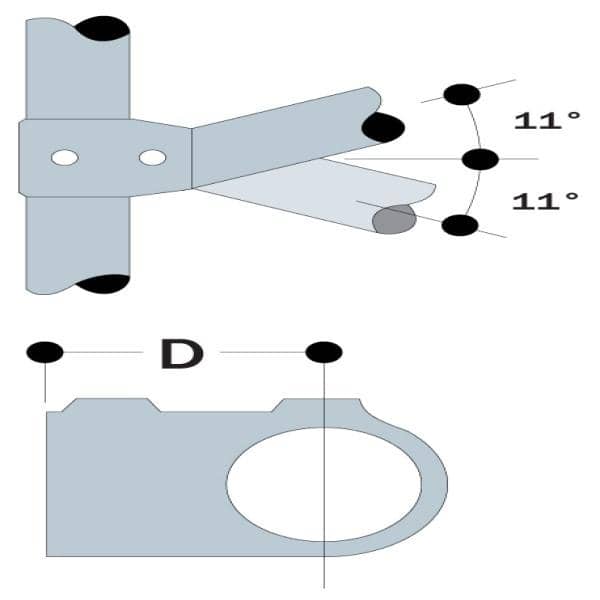

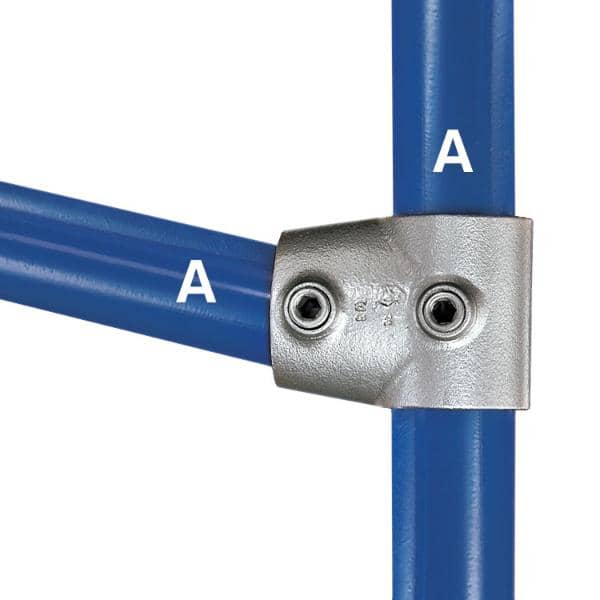

This fitting is used to join the middle rail to an end upright on a guardrail on a slope of up to 11°. This fitting cannot be used where the pipe through sleeve 'A' is required to be joined within the Kee Klamp® fitting.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||
| Type | A | D | lbs. |
| 86-8 | 1.90" | 2.68 | 1.68 |
