Type 78 - Eye Fitting
Description

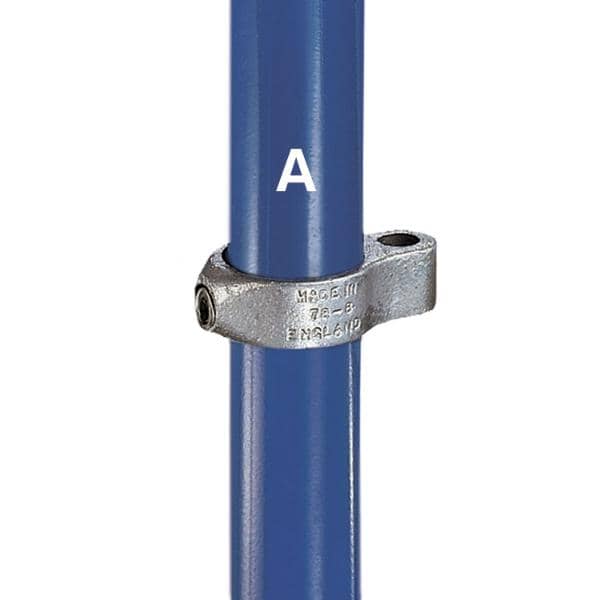

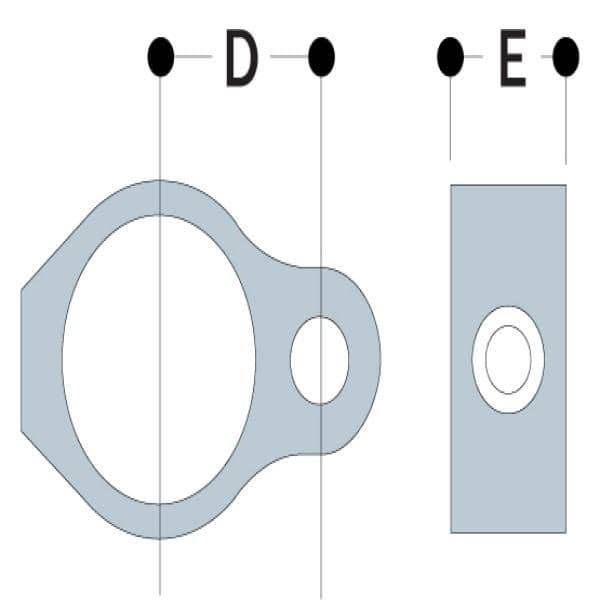

A fitting used in conjunction with Type 83 fittings for gate hinges. Ø indicates diameter of pivot hole.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | Ø | lbs. |
| 78-6 | 1.32" | 1.30 | 1.02 | 0.55 | 0.55 |
| 78-7 | 1.66" | 1.50 | 1.02 | 0.57 | 0.57 |
| 78-8 | 1.90" | 1.61 | 1.02 | 0.62 | 0.62 |
