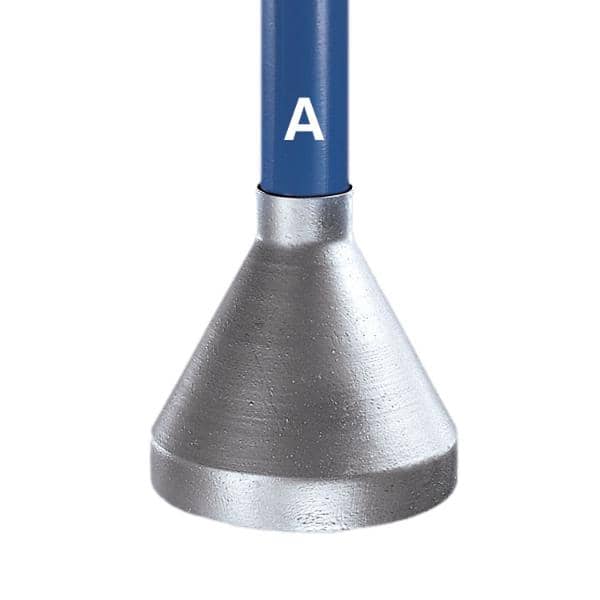

Type 71 is a weather cap designed for roof guard railing to ensure a weather-tight seal for base fixing flanges. The weather cap can be secured to the upright by means of a combined sealant and adhesive.
Nominal Pipe Size
inches
lbs

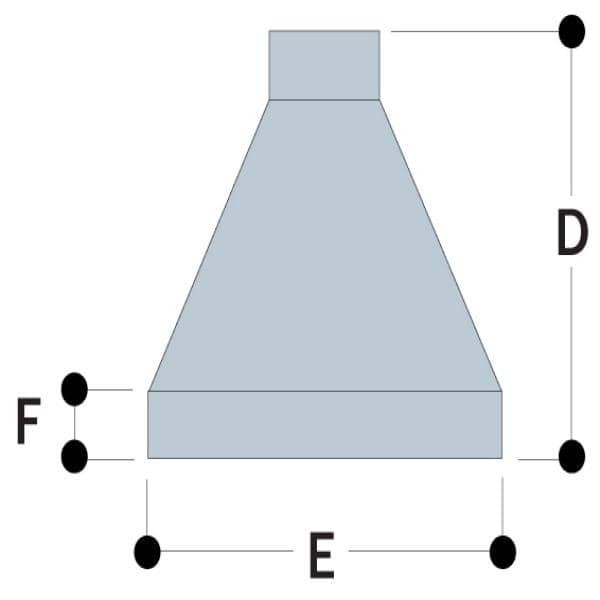

Type
A
B
C
D
E
F
G
H
71-6
1"
4.92
5.63
0.98
0.53
71-7
1 1/4"
5.91
6.06
0.71
71-8
1 1/2"
6.10
6.57
0.79
