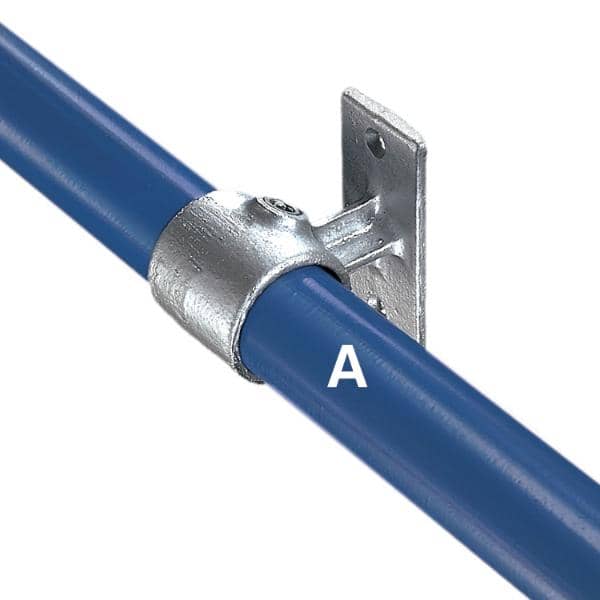

This fitting, with holes provided for countersunk head screw fixing only, is designed to carry handrails along walls or to fix structures backs to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach kicking boards to the base of guardrail uprights. Ø indicates fixing hole diameter. Warning: These fittings are not to be used as base flanges for full height guardrails.
Nominal Pipe Size
inches
lbs

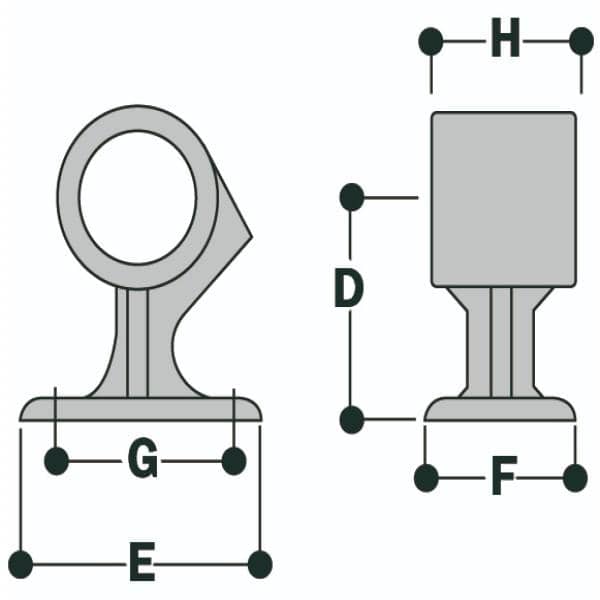

Type
A
B
C
D
E
F
G
H
Ø
70-5
3/4"
2.13
3.00
1.81
2.24
0.31
0.79
70-6
1"
2.28
3.46
1.57
2.76
0.97
70-7
1 1/4"
2.52
4.02
1.77
3.23
1.23
70-8
1 1/2"
4.25
2.05
1.72
