Type 18 - Internal Coupling
Description

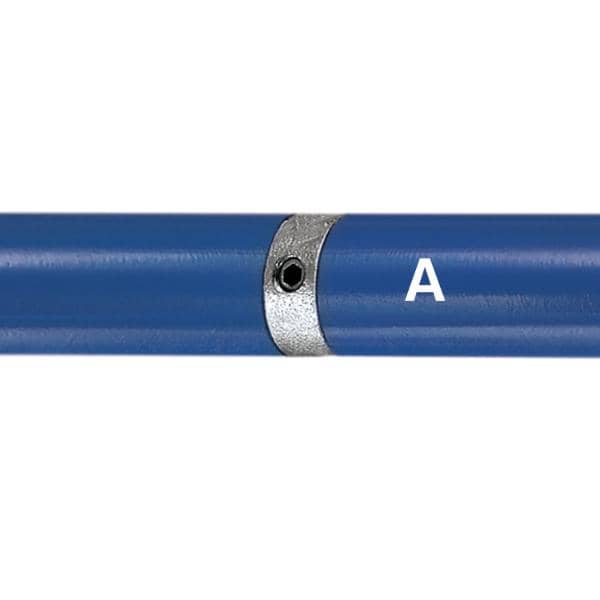

An internal spigot providing a flush joint between two pieces of pipe of the same diameter. Not as strong as the Type 14 fitting, the Type 18 fitting must not be used as a load bearing joint. Note: This fitting can only be used with schedule 40 pipe. Danger: The Type 18 fitting must not be used as a load bearing joint.
Share:
Copied!

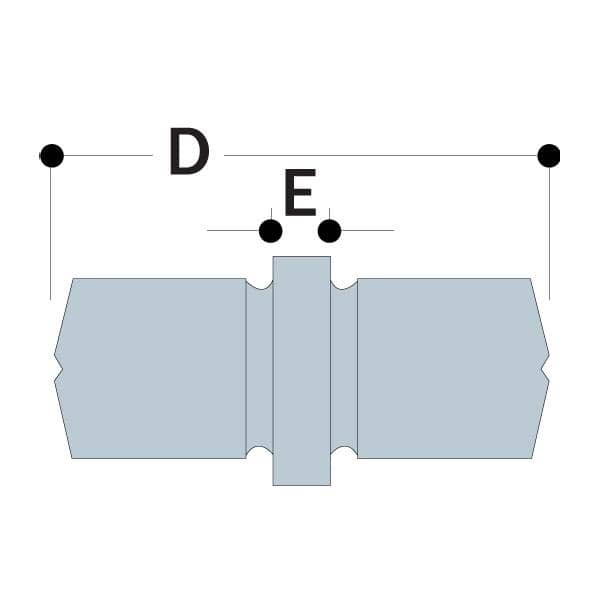

| Pipe OD | Meas. (in.) | |||
| Type | A | D | E | lbs. |
| 18-6 | 1.32" | 2.99 | 0.79 | 0.57 |
| 18-7 | 1.66" | 2.99 | 0.79 | 0.84 |
| 18-8 | 1.9" | 3.74 | 0.79 | 1.19 |
