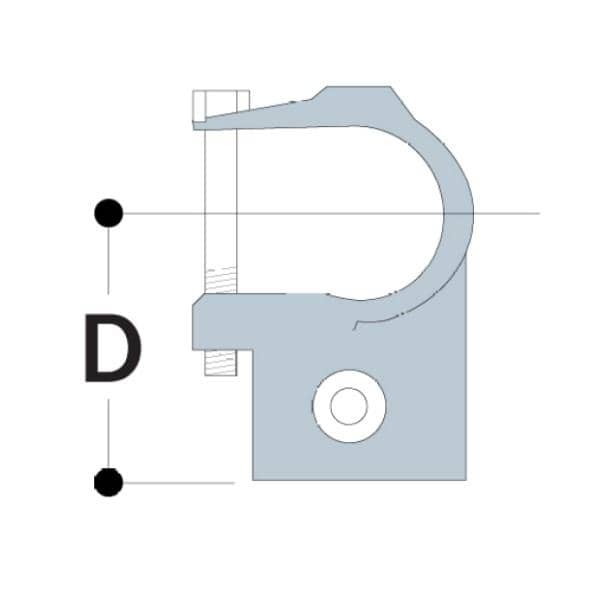

Widely used for adding to and modifying existing structures. This performs the same function as a Type 10, but because of its open socket it can be added to a complete structure. For alternative fitting, see Type A10
Nominal Pipe Size
inches
lbs
Type
A
B
C
D
E
F
G
H
16-5
3/4"
1.97
0.64
16-6
1"
2.05
0.73
16-7
1 1/4"
2.68
1.30
16-8
1 1/2"
2.87
1.32
16-9
2"
3.54
2.03
