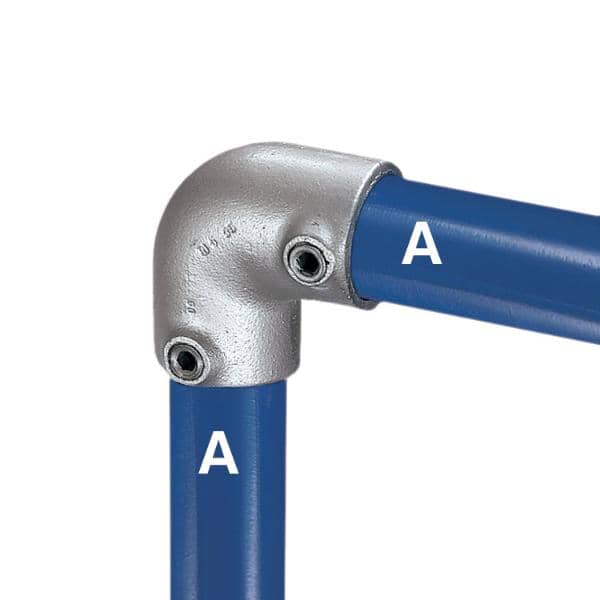

Type 15 - 90° Elbow
Description
A 90° elbow joint, most frequently used as an end joint for the top rail of guardrail on a level site.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||
| Type | A | D | lbs. |
| 15-6 | 1.32" | 1.81 | 0.86 |
| 15-7 | 1.66" | 2.36 | 1.48 |
| 15-8 | 1.90" | 2.67 | 1.70 |
| 15-9 | 2.38" | 3.34 | 2.82 |
