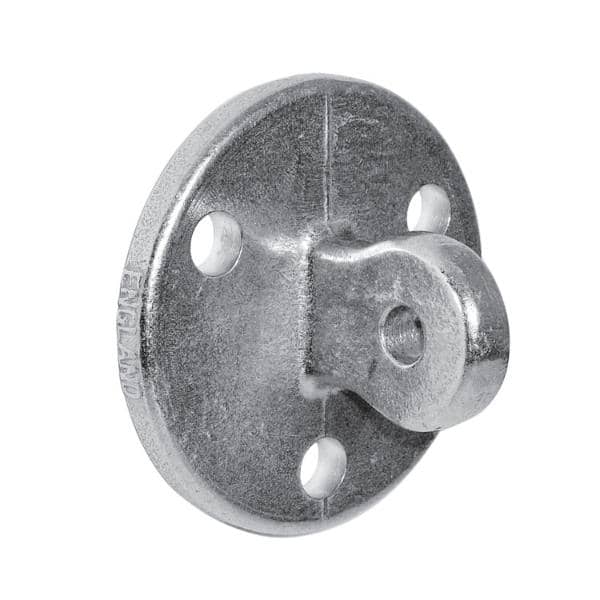

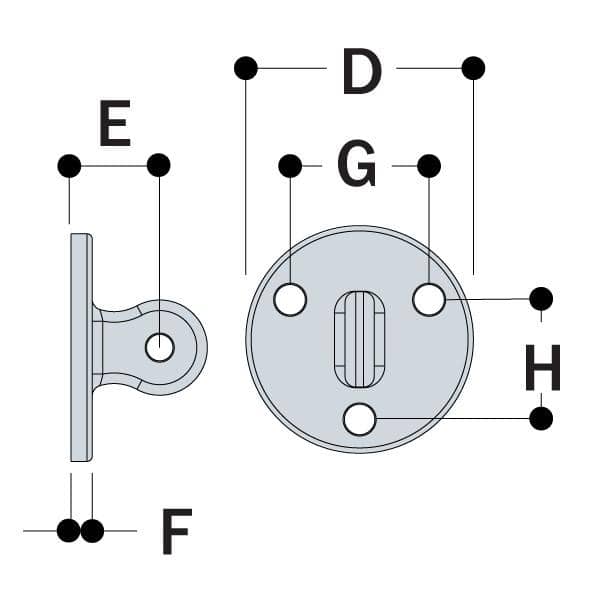

The male part of a swivel fitting for attaching angled tubing to flat surfaces, ø indicates diameter of rivet hole, øø indicates diameter of fixing holes.
Pipe Ref.
Dimension (in)
Weight
Type
A
B
C
D
E
F
G
H
ø
øø
(lb)
LM58
3.38
1.32
0.31
2.07
1.78
0.38
0.45
0.37
