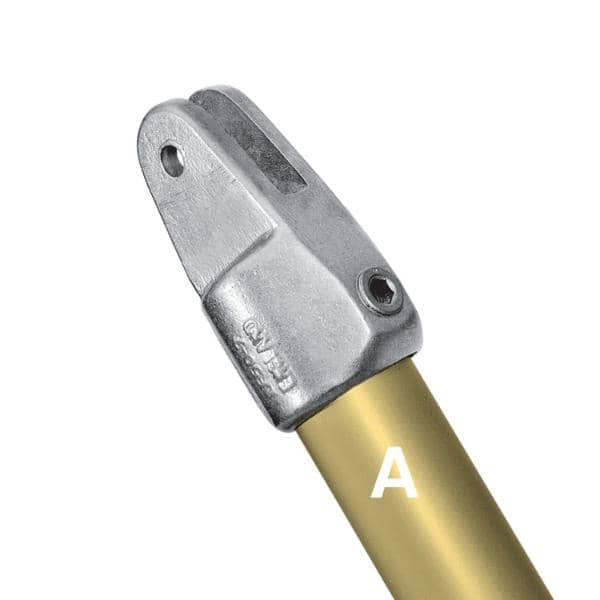

Type LF50 - Female Single Socket Member
Description
The female part of a swivel fitting combination. Ø indicates diameter of rivet holes.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | Ø | lbs. |
| LF50-6 | 1.32" | 1.97 | 1.67 | 2.95 | 2.09 | 0.38 | 0.37 |
| LF50-7 | 1.66" | 2.32 | 2.09 | 3.54 | 2.32 | 0.38 | 0.55 |
| LF50-8 | 1.90" | 2.56 | 2.36 | 3.54 | 2.64 | 0.38 | 0.64 |
