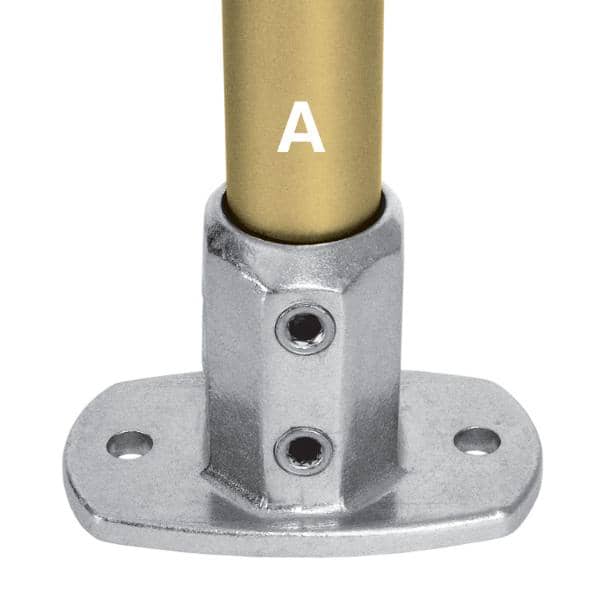

Ideal when a structural fixing is required. Type L62 should always be used to fix down guardrail and balustrades. The holes are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor. The two socket set screws in the vertical socket give greater stability to the upright. The fixing holes in the flanges should be inline with the applied load. Ø indicates diameter of fixing holes.

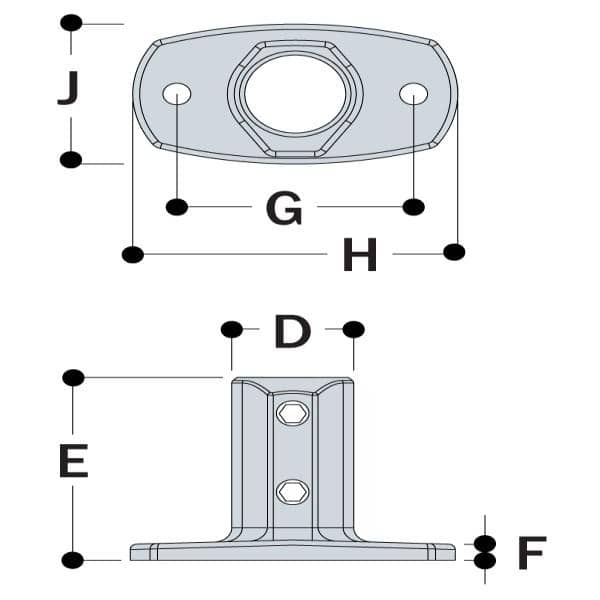

Pipe Ref.
Dimension (in)
Weight
Type
A
D
E
F
G
H
J
L62-7
7
2.18
3.54
0.35
3.23
0.56
0.94
L62-8
8
2.43
1.17
