Type L150 - Heavy Duty 4 Hole Square Flange

(877) 723-3766

MADE IN USA USA Flag

Aluminum Fitting Type L150 - Heavy Duty 4 Hole Square Flange

Type L150 - Heavy Duty 4 Hole Square Flange

Type L150 - Heavy Duty 4 Hole Square Flange

Request Quote

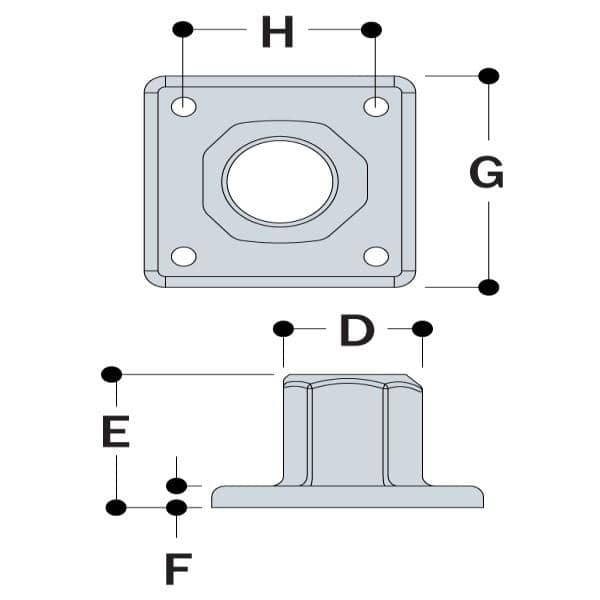

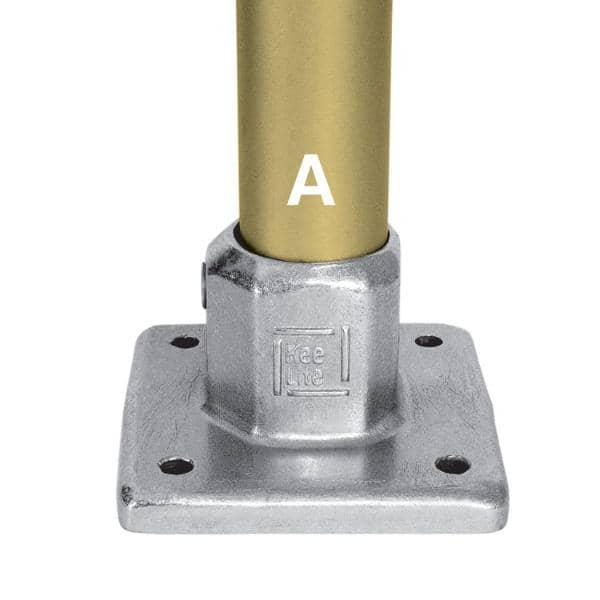

A heavy duty, four point fixing, base flange. Ideal when a structural fixing is required. Ø indicates diameter of fixing holes.

	Pipe OD	Meas. (in.)
Type	A	D	E	F	G	H	Ø	lbs.
L150-8	1.90"	2.56	3.00	0.51	5.00	3.5.0	0.45	1.61

	Pipe Ref.			Dimension (in)						Weight
Type	A	B	C	D	E	F	G	H	ø	(lb)
L150-8	8			2.56	3.00	0.51	5.00	3.50	0.45	1.61
