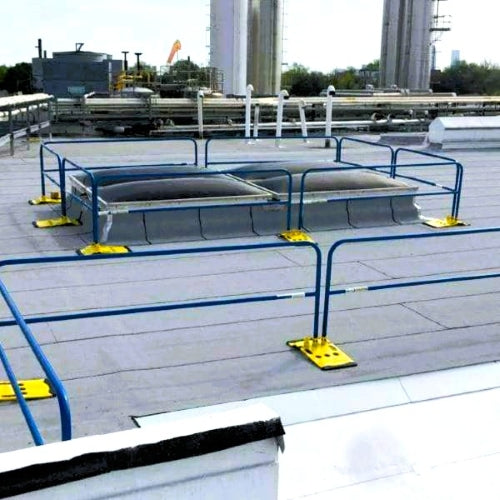

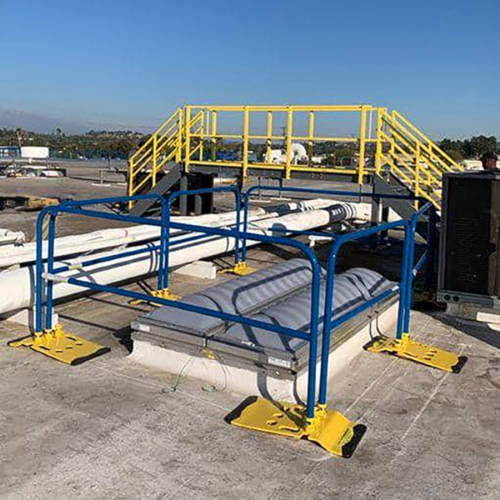

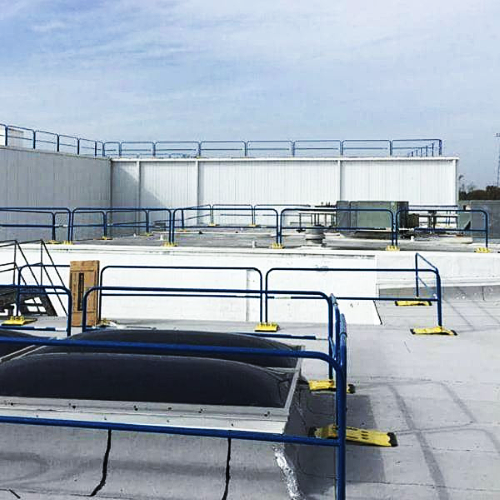

NextGen 3000™ Universal Skylight Railing satisfies OSHA Code 1910.28(b)(3)(i) requiring skylights to be protected. The safety railing is used for large banks of skylights and large or odd shaped skylights. The Universal Skylight Railing is state-of-the-art skylight fall protection, non-penetrating, and modular. Due to its patented engineering and design, NextGen 3000™ outperforms all other skylight guardrails. When force is applied to the top safety rail the lightweight, easy to carry, 58-pound bases drive the load downward and grip into the roof. Installation is fast and easy. It comes standard in Safety yellow with 15 optional colors available to compliment any architectural requirements. NextGen 3000™ Universal Skylight Railing is made in the USA.
Click Here to purchase Rails and Bases online.
Features: OSHA compliant engineered design Lightweight, stackable bases with grab handles Bases designed with neoprene rubber feet High quality / Low cost Simple installation
Technical Specifications: Tested to exceed OSHA Standards 58 lb steel bases Pre-assembled 1.66 OD panels (5ft, 7.5ft, 10ft) NG-22 Coating - Yellow Finish (other colors available) or Galvanized finish

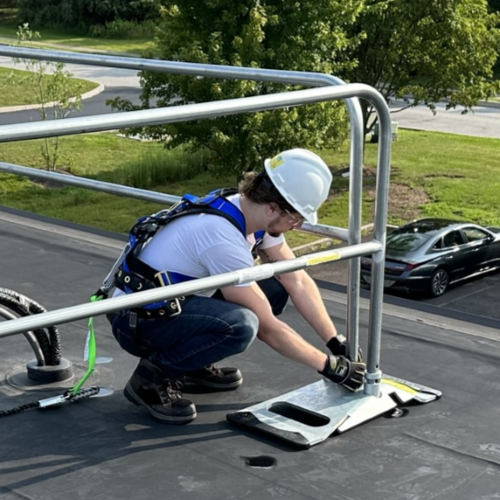

Installation: Tie-off according to OSHA Standards Remove stones from roof at base location Place bases 18 in. from the roof edge Insert railing panels into base sockets Secure railing to base using hitch pin
