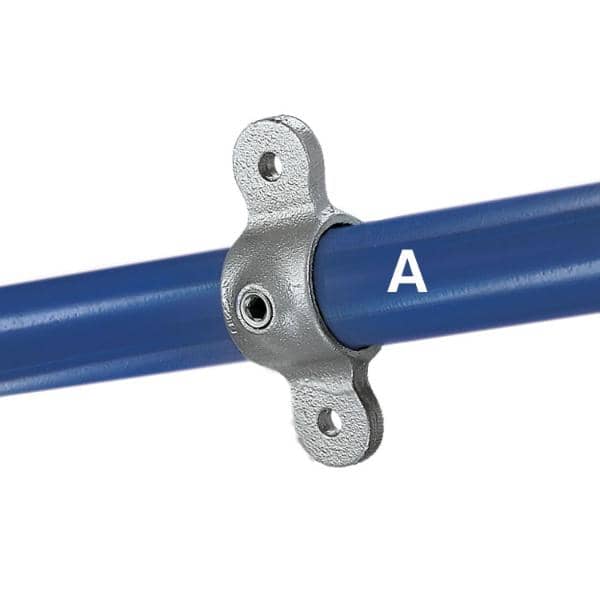

Type M51 - Male Double Swivel Socket Member
Description
One half of a combination fitting. This can also be used for attaching flat panels to tubular structures. Ø indicates bolt hole diameter.
Share:
Copied!
| Pipe OD | Meas. (in.) | Bolt Hole | ||||
| Type | A | D | E | F | Ø | lbs. |
| M51-6 | 1.32" | 1.69 | 1.50 | 0.75 | 0.39 | 0.84 |
| M51-7 | 1.66" | 1.89 | 1.77 | 0.75 | 0.39 | 1.01 |
| M51-8 | 1.90" | 2.13 | 1.77 | 0.75 | 0.39 | 1.06 |
| M51-9 | 2.38" | 2.44 | 2.05 | 0.75 | 0.39 | 1.57 |
