Type 79 - Sheeting Clip
Description
This fitting is used to attach profiled sheeting material to Kee Klamp® pipe. The fitting is supplied with a hexagonal head fixings bolt, M6x50mm long, a sealing washer, and nut. Ø indicates diameter of bolt hole.
Share:
Copied!

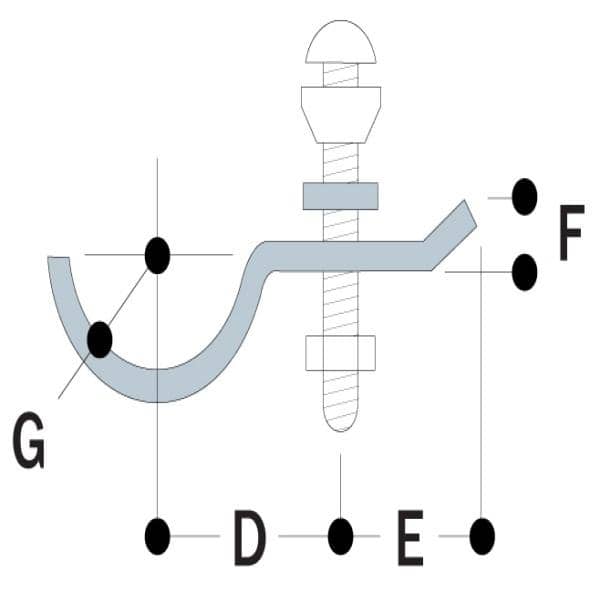

| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | Ø | lbs. |
| 79-7 | 1.66" | 1.81 | 1.34 | 0.31 | 0.83 | 0.31 | 0.18 |
