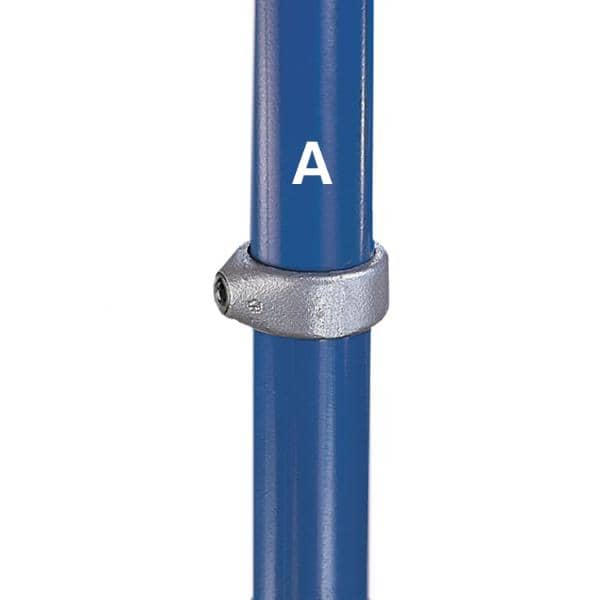

Type 75 - Collar
Description
A collar commonly used to support another Kee Klamp® fitting of the latter is required to be left untightened (ie on gate hinges). Type 75 is also useful when loading on a structure exceeds the maximum permitted slip load for a socket set screw, as it gives extra support.
Share:
Copied!

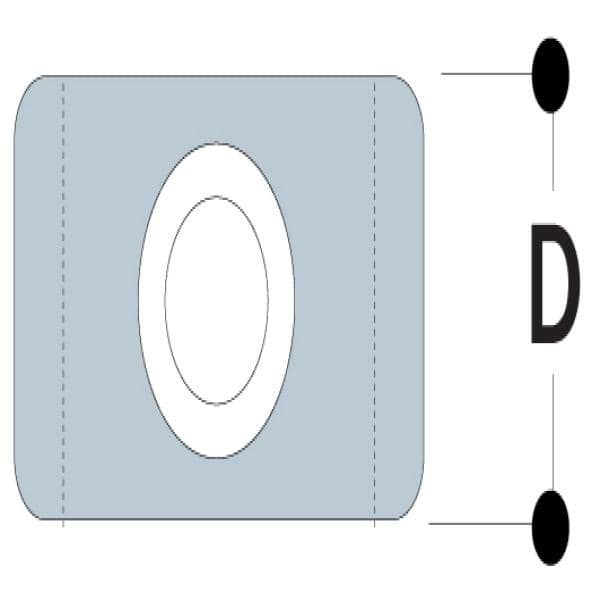

| Pipe OD | Meas. (in.) | ||
| Type | A | D | lbs. |
| 75-6 | 1.32" | 1.00 | 0.29 |
| 75-7 | 1.66" | 1.00 | 0.33 |
| 75-8 | 1.90" | 1.00 | 0.42 |
