Type 350 Eaves Fitting
Description

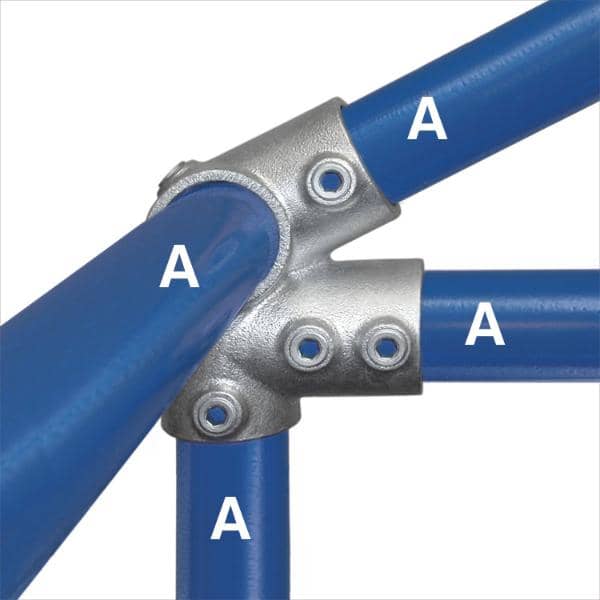

Eaves Fitting The Type 350 fitting has been designed for small structural building applications and provides for significant load rating. When used with the Type 351 ridge fitting a truss arrangement for additional support can be achieved. Double set screws are provided on the truss outlet to provide additional pull out resistance to hold structures firmly together.
Share:
Copied!

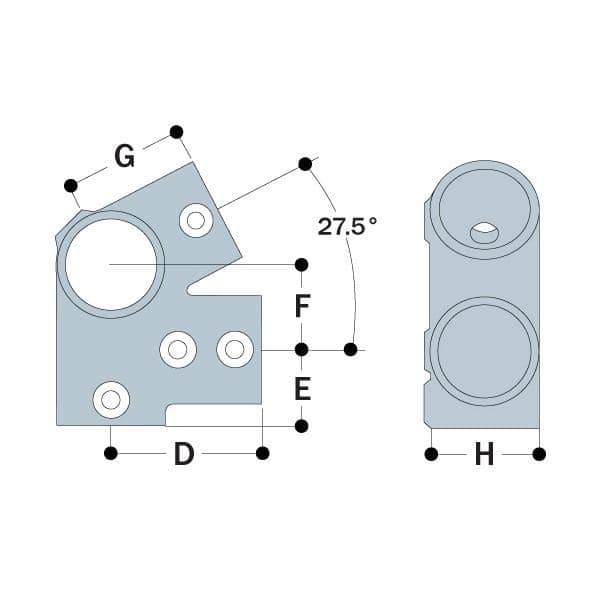

| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | H | lbs. |
| 350-8 | 1.90" | 3.27 | 1.65 | 1.85 | 2.64 | 2.36 | 2.62 |
