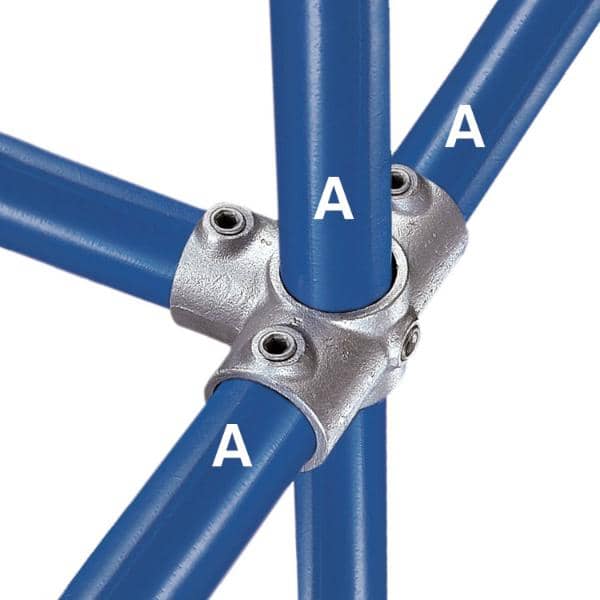

Type 35 - Three Socket Cross
Description
Most frequently used to tie uprights with horizontal pipe in three directions, all at 90° to the upright. The upright passes through the fitting.
Share:
Copied!
| Pipe OD | Meas. (in.) | |||
| Type | A | D | E | lbs. |
| 35-6 | 1.32" | 1.81 | 3.62 | 0.99 |
| 35-7 | 1.66" | 2.36 | 4.72 | 1.7 |
| 35-8 | 1.90" | 2.68 | 5.35 | 2.62 |
| 35-9 | 2.38" | 3.35 | 6.69 | 4.04 |
