Type 17 - Clamp-on Crossover








Type 17 - Clamp-on Crossover

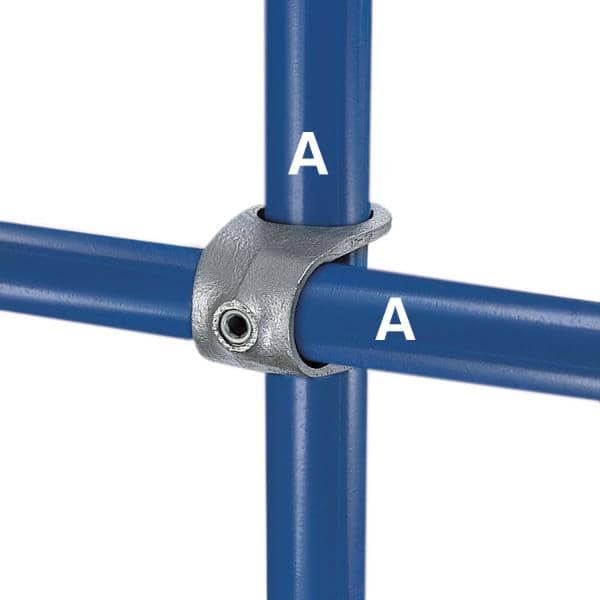

Designed to provide a 90 ° cross-over joint. Can be added to an existing structure. Pipe should not be joined within this Kee Klamp® fitting. For alternative fitting, see Type 45 or Type A45.
Pipe OD | Meas. (in.) | |||
Type | A | D | E | lbs. |
17-6 | 1.32" | 1.34 | 1.89 | 0.51 |
17-7 | 1.66" | 1.69 | 2.28 | 0.95 |
17-8 | 1.9" | 1.93 | 2.56 | 1.23 |
17-9 | 2.38" | 2.4 | 3.07 | 1.98 |
Nominal Pipe Size
|
inches
|
lbs
|
|||||||
Type
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
17-5
|
3/4"
|
1.06
|
1.57
|
0.33
|
|||||
17-6
|
1"
|
1.34
|
1.89
|
0.51
|
|||||
17-7
|
1 1/4"
|
1.69
|
2.28
|
0.95
|
|||||
17-8
|
1 1/2"
|
1.93
|
2.56
|
1.23
|
|||||
17-9
|
2"
|
2.40
|
3.07
|
1.98 |
