Type 10 - Single Socket Tee
Description

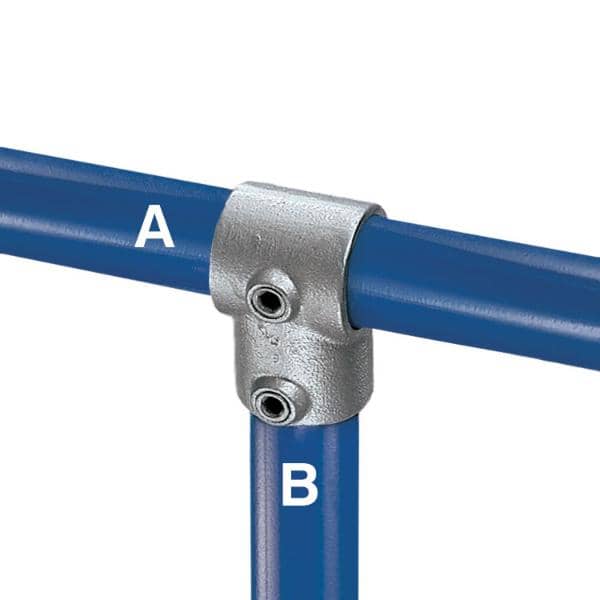

Designed to give a 90° butt joint between two lengths of pipe. Frequently used for the joint between end uprights and the middle rail on guard railing where the site is straight and level. Also for base ties on racking. This fitting cannot be used where the pipe through the sleeve 'A' is required to be joined within the Kee Klamp® fitting.
Share:
Copied!

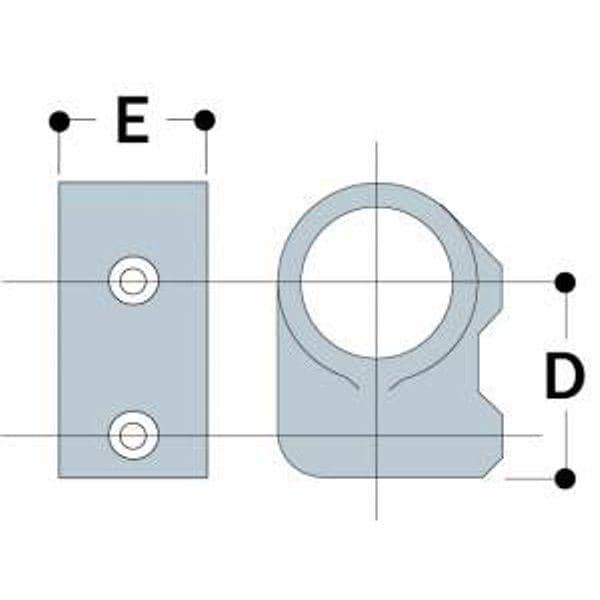

| Pipe OD | Meas. (in.) | ||||
| Type | A | B | D | E | lbs. |
| 10-6 | 1.32" | 1.32" | 1.81 | 1.84 | 0.64 |
| 10-65 | 1.32" | 0.75" | 1.75 | 1.46 | 0.55 |
| 10-67 | 1.32" | 1.66" | 2.16 | 2.16 | 0.95 |
| 10-7 | 1.66" | 1.66" | 2.38 | 2.16 | 0.99 |
| 10-75 | 1.66" | 0.75" | 2.25 | 1.46 | 0.71 |
| 10-76 | 1.66" | 1.32" | 2.25 | 1.81 | 0.95 |
| 10-78 | 1.66" | 1.90" | 2.88 | 2.38 | 1.39 |
| 10-8 | 1.90" | 1.90" | 2.69 | 2.38 | 1.28 |
| 10-87 | 1.90" | 1.66" | 2.47 | 2.16 | 1.10 |
| 10-9 | 2.38" | 2.38" | 3.31 | 2.88 | 2.14 |
| 10-98 | 2.38" | 1.90" | 2.94 | 2.52 | 1.43 |
