Type M50 - Male Single Swivel Socket Member
Description

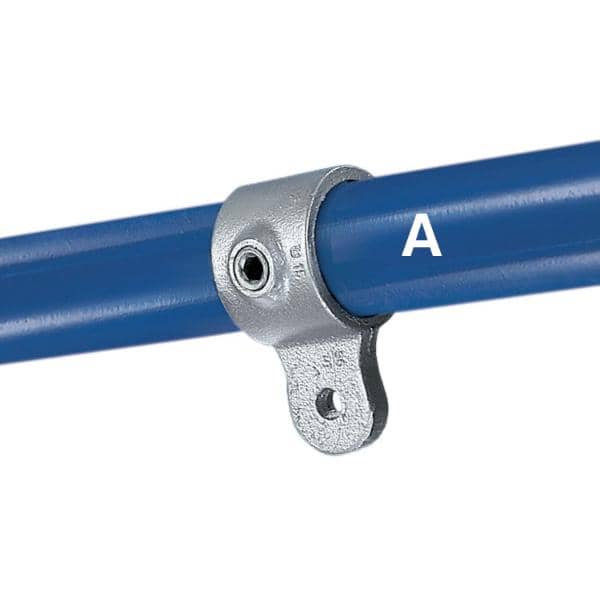

One half of a combination fitting. This can also be used for attaching flat panels to tubular structures. Ø indicates diameter of bolt hole.
Share:
Copied!
| Pipe OD | Meas. (in.) | Bolt Hole | ||||

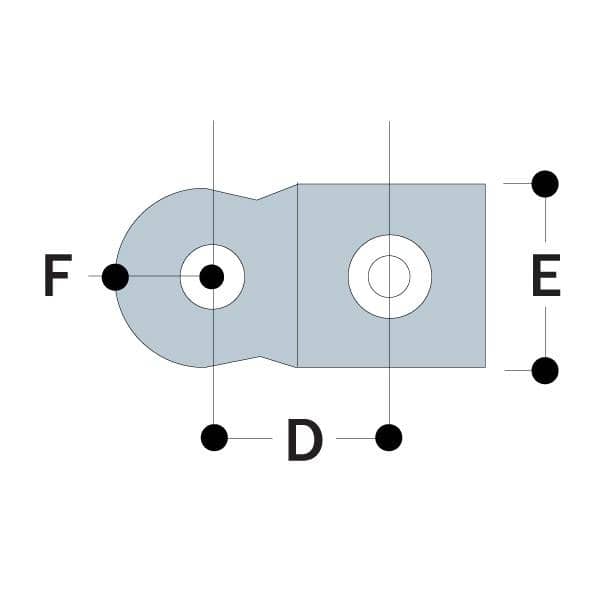

| Type | A | D | E | F | Ø | lbs. |
| M50-6 | 1.32" | 1.69 | 1.50 | 0.75 | 0.39 | 0.60 |
| M50-7 | 1.66" | 1.89 | 1.77 | 0.75 | 0.39 | 0.79 |
| M50-8 | 1.90" | 2.13 | 1.85 | 0.75 | 0.39 | 0.92 |
| M50-9 | 2.38" | 2.44 | 2.05 | 0.75 | 0.39 | 1.19 |
