Type L10 - Single Socket Tee
Description

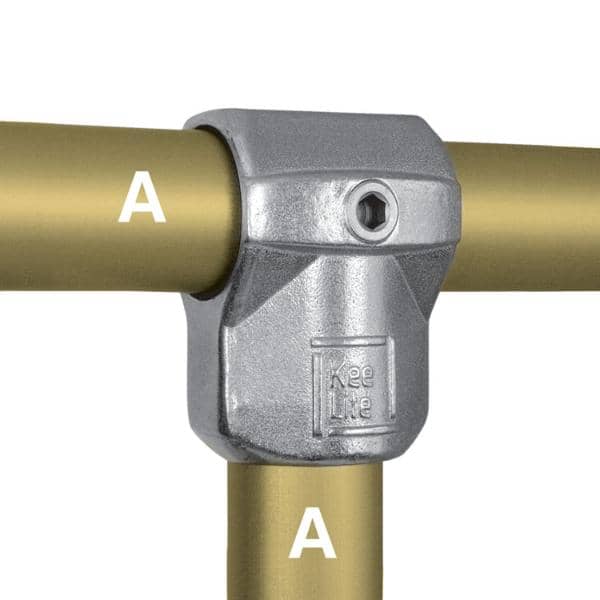

Designed to give a 90° butt joint between two pipes. Frequently used for the joint between end uprights and the middle rail where the site is straight and level. Also used for base ties on racking. This fitting cannot be used where the pipe through the sleeve 'A' is required to be joined within the fitting.
Share:
Copied!

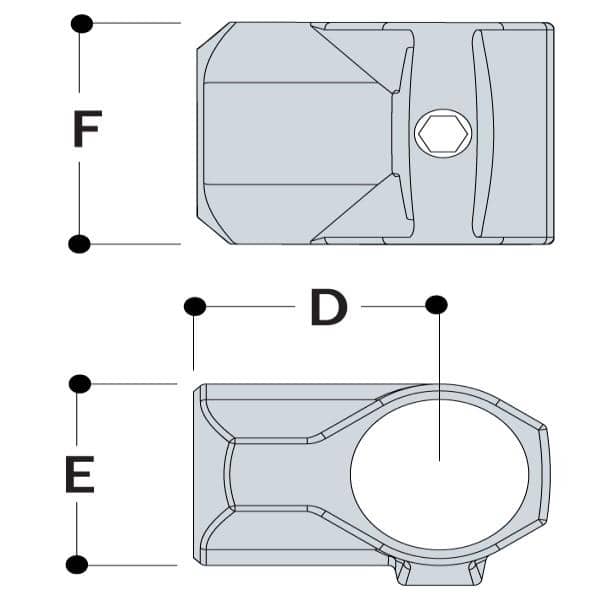

| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | F | lbs. |
| L10-6 | 1.32" | 2.05 | 1.67 | 2.20 | 0.29 |
| L10-7 | 1.66" | 2.56 | 2.09 | 2.52 | 0.44 |
| L10-8 | 1.90" | 2.91 | 2.36 | 2.76 | 0.66 |
| L10-9 | 2.38" | 3.54 | 2.91 | 3.23 | 1.06 |
