Type L61 - Flange
Description

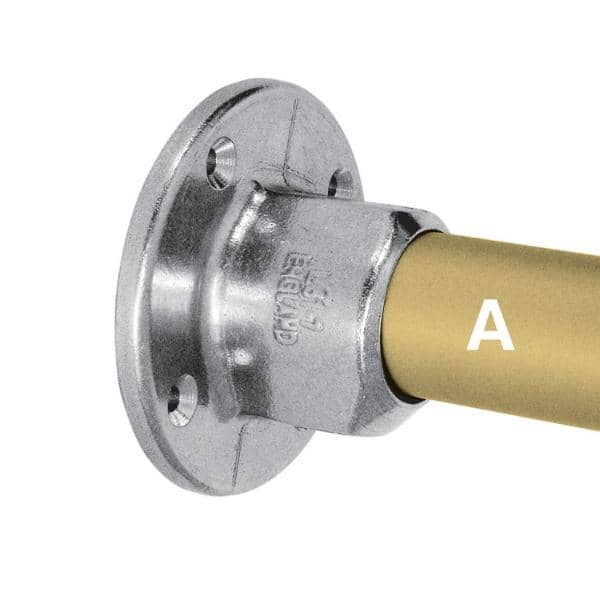

This flange, with holes provided for countersunk head fixing screws only, is used on structures where the fixing is positional only. Frequently used as a wall-fixing bracket. Type L152 for a square based alternate to this fitting. Ø indicates diameter of fixing holes. Warning: It is not recommended for use as a base flange to support guardrail or balustrading.
Share:
Copied!

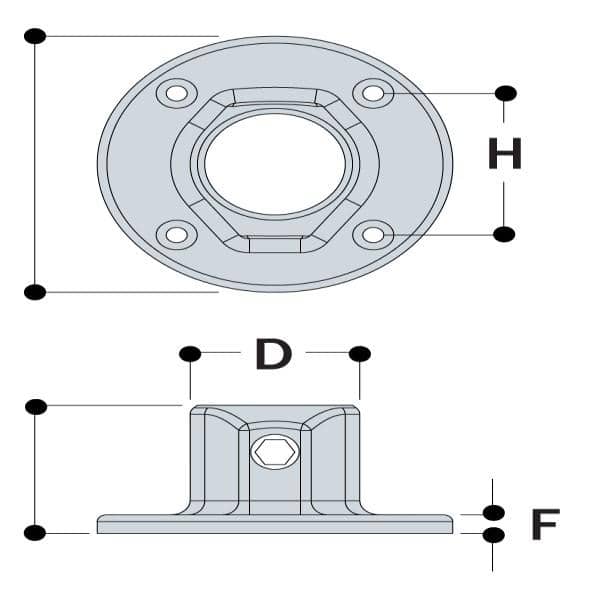

| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| L61-6 | 1.32" | 1.67 | 1.97 | 0.31 | 3.94 | 1.93 | 0.25 | 0.46 |
| L61-7 | 1.66" | 2.09 | 2.17 | 0.31 | 4.33 | 2.40 | 0.25 | 0.64 |
| L61-8 | 1.90" | 2.36 | 2.36 | 0.31 | 4.72 | 2.64 | 0.25 | 0.71 |
