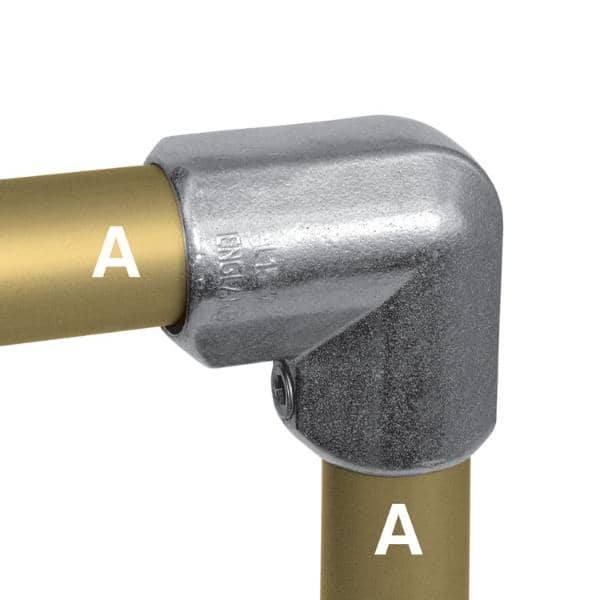

A 90° elbow joint, most frequently used as an end joint for the top rail of guardrail on a level site.
Pipe Ref.

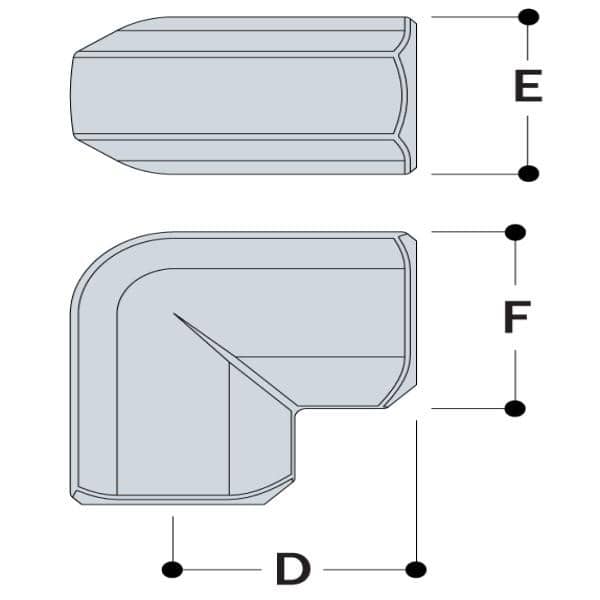

Dimension (in)
Weight
Type
A
D
E
F
G
H
J
L15-6
6
2.05
1.67
2.20
0.31
L15-7
7
2.56
2.09
2.32
0.62
L15-8
L15-9
